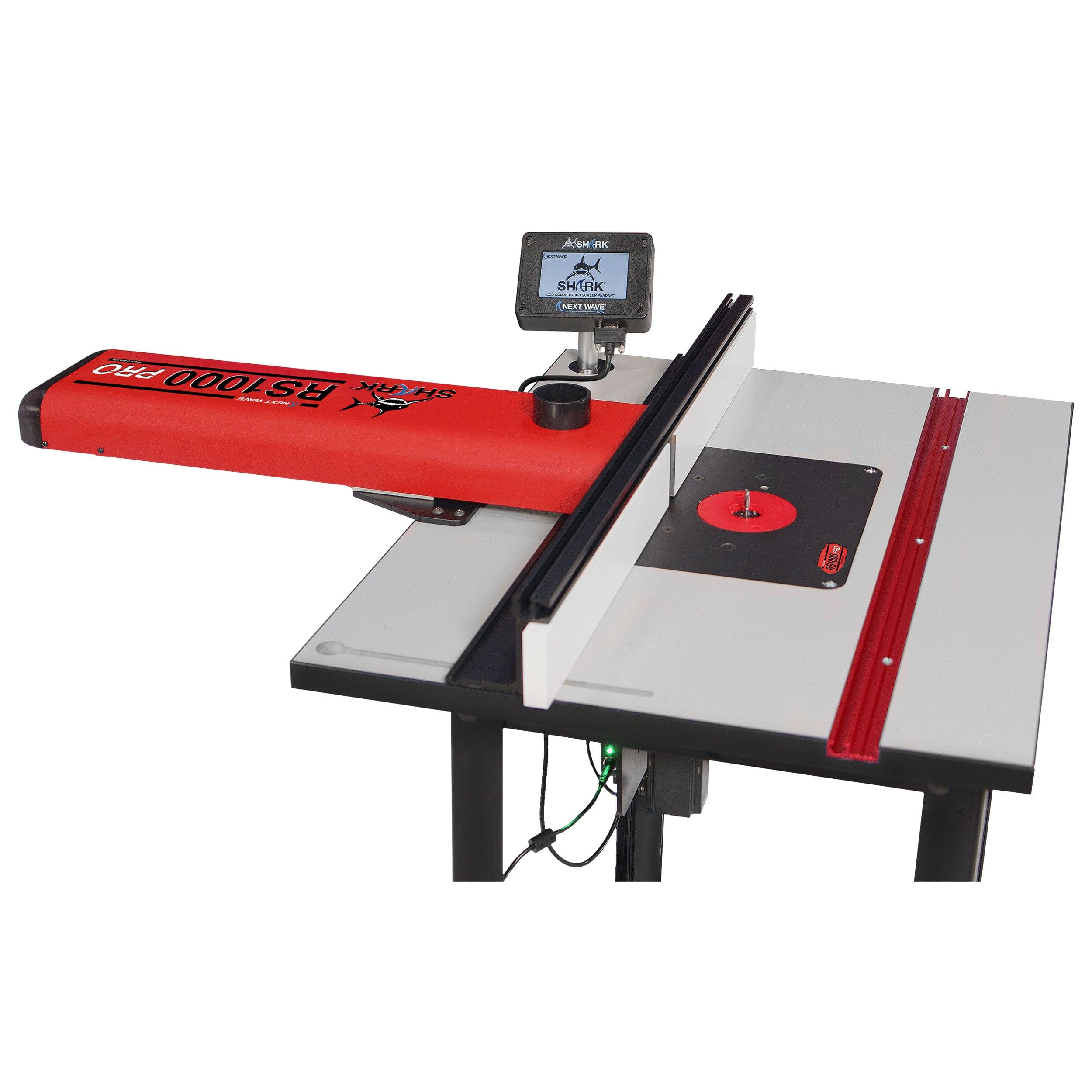

SHARK RS1000 Pro

Add CNC functionality to the router table in your shop. The Shark RS1000 transforms nearly any router table into a full-fledged 2 Axis CNC allowing you to adjust your fence or bit height by as little as .001". The RS1000 has preloaded apps to do over a dozen common router and specialty joinery functions, such as Box Joints, Dovetail, Dado, Lock Miter and many more. Will fit most router benches with a minimum mounting opening on the backside of table of 9-1/4" D (backside of bit to back of table x 11-1/4" W between table legs.

• Onboard processor with Color LCD pendant control
• Fence and lift move accurately in direct relationship to the bit with movement as little as .001"
• Full 12" Fence travel for larger projects
• Toggles between imperial, metric and decimal measurements, no converting necessary
• Programmable memory locations for commonly used setting
• Works with any standard 3.5" Router Motor (not included)
• Integrated 2-1/4" dust port
• Simple to use, type in desired measurements and press ok
• Touch off plate included.

What's Included:

• (1) Next Wave - SHARK RS1000 Pro
• Touch off plate included.

FAQs

What’s the maximum cutting size and usable work area?

The RS1000 Pro offers a usable cutting area of approximately 24" x 24", depending on setup. It’s a good fit for small to mid-sized CNC projects.

What software is included, and do I need to upgrade to VCarve Pro?

It typically includes basic design and control software to get started, such as VCarve Desktop or similar. Upgrading to VCarve Pro is optional but beneficial for larger projects and advanced features.

Next Wave products can be returned if they are in unopened, resaleable condition. You will be responsible for a 25% restocking fee. If you need help initiating a return, please contact Woodcraft Customer Service at 1-800-535-4482.
